3- Point Deep Tine Aerators DSA7000
3- Point Deep Tine Aerators DSA7000
Call for freight pricing 239-357-1853 Craig.

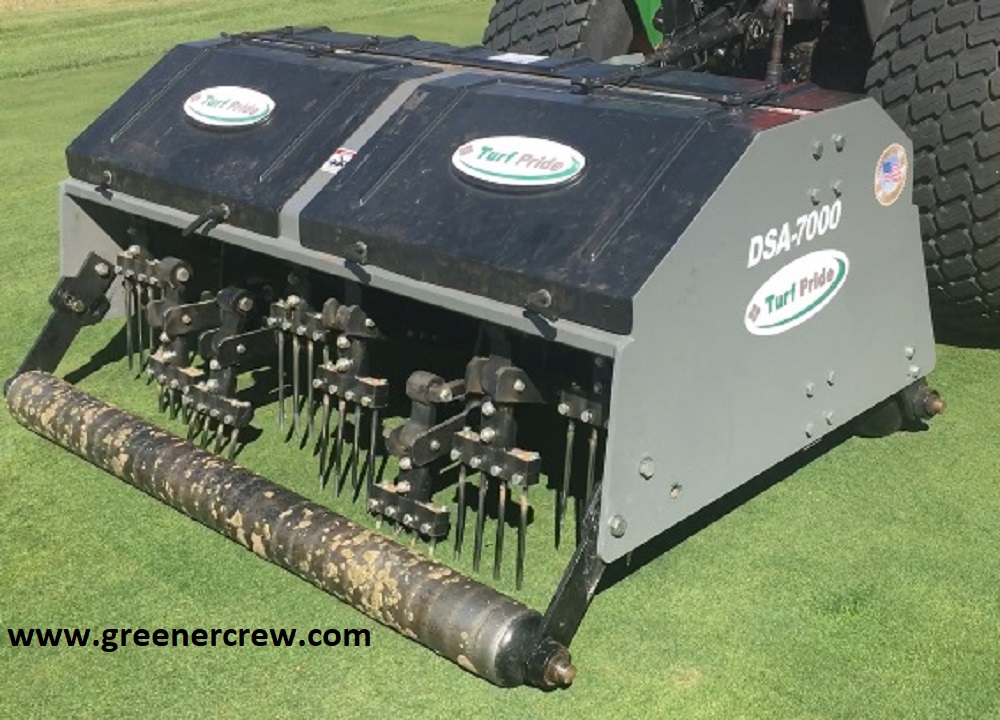

Deep Tine Aerators DSA 7000
HOW TO ORDER:
Select the Base Unit and then make selections from Section A and Section B. (individual replacement tines listed below).
$26,950 DSA-7000 Base Unit.
Section A – Tine Blocks (price is for Set of 6 Blocks).
DSA-4516-70 – Select 5/16" Tines (Holds 4 Tines, 5/16" diameter, solid).$960
DSA-312-70 – Select 1/2" or 5/8" Tines $960 (Holds 3 Tines, 1/2" Solid Tines or 5/8" Coring Tines)
DSA-234-70 – Select 3/4" Tines (Holds 2, 3/4" Tines) $960
DSA-334-70 – Select 3/4" Tines (Holds 3, 3/4” Tines) $960
SECTION B – TINE SETS.
TP-DSA5168S-70 32 pieces – 5/16" x 8" Solid (4 per head) $126
TP-DSA51610S-70 32 pieces – 5/16" x 10" Solid (4 per head) $140
TP-DSA1210S-70 24 pieces – 1/2" x 10" Solid (3 per head) $189
TP-DSA3410S-70 16 pieces – 1/2" x 10" Solid (2 per head) $207
TP-DSA587C-70 24 pieces – 5/8" x 7" Coring (3 per head) $425
TP-DSA347C-70 16 pieces – 3/4" x 7" Coring (2 per head) $324
TP-DSA3410C-70 16 pieces – 3/4" x 10" Coring (2 per head) $510
Over 20 years of testing and engineering have gone into the development of Turf Pride’s Deep Speed Aerator. The Deep Speed Aerator is cutting edge & manufactured to perform up to the expectations of the most demanding conditions. Durability, performance, user friendly and affordability are some of the many benefits of Turf Pride’s deep speed aerator.
The main frame is one piece of solid steel for excellent durability. The bearing mounting top surfaces are machined to ensure perfect alignment of the crank assembly.
Heavy Duty Gear Box
The drive system consists of a heavy duty gear box with dual chain drive to the main drive shaft.
Spring Loaded Tine Alignment Assembly
The spring loaded tine alignment assembly arm (Patented-US 8,479,836B2) and the parallel linkage arms perfectly position the tines so they move down and backward. Compare this movement to other deep tine aerators that use an arc motion and you will see the difference in the quality. The unique positioning of Turf Pride’s Deep Speed spring loaded assemblies produce maximum aerating action deep into the soil without disturbing the playing surface, at any speed. Regardless of ground speed the results are always the same – Deep Speed.
The Deep Speed Aerator (DSA) is a heavy-duty aerator for us on golf course greens, tees and sports fields, including football, soccer, baseball, tracks and polo fields. The DSA punches holes up to 10" deep into the soil without damaging the playing surface. The patented tine alignment spring assembly places the tine in the perfect position and moves them as forward progress advances extracting them and leaving a small hole in the turf surface. The DSA is capable of both solid tine aerification and hollow or coring tine action. Tine options from 5/16" diameter up to 1" diameter is available. Other sizes and customer specifications are also available upon request.
Productivity: 48,000 sq. ft. /hr (4,460sq. m/hr).
Hole Spacing: 2"– 6" (51 mm – 154 mm).
Maximum Tine Depth: 10" (254 mm).
Recommended Tractor Size: 35-40 hp.
PTO Speed: 540 rpm.
Lift Type: 3-point hitch.
Weight: 2240 (1016 kg).
Width (working): 70" (1.8m).
Transport Width: 74" (1.9 m)
Warranty: 3 year limited warranty.
The crank assembly is driven by one primary chain drive and three heavy duty "C" section belts. The chains ensure timing accuracy and the belts divide the drive torque which means less stress to the connecting arm assemblies thus resulting in longer life of the crank assembly.
Front and rear rollers with cable scrapers are standard on all units. In solid tine operations the rear roller is located behind the tines when coring simply swing the roller forward of the tines. The roller along with the down pressure spring top hitch allow the aerator to follow undulations.
The unique design of the CRANK ASSEMBLY with perfectly timed offsets between each connecting arm assembly maintains balance without the need of counter weights. The connecting arms are timed in a way that only one set of tines is entering the ground at any given time. Total weight of the machine is focused on the one tine assembly entering the soil, plunging the tines deep into the soil even in the toughest and hardest ground conditions.
Deep Speed Aerator:
Was purposely designed with an OPEN concept which makes maintenance simpler and easier on both the front and rear of the machine Removable covers allow for easy access to keep belt and chains properly adjusted.
A complete selection of tine blocks to support virtually any desired tine configuration (solid, coring, cross, wedge, saber and custom designs are available).
