Turf Maintenance Equipment Lift System
Turf Maintenance Equipment Lift System
Call for Freight Pricing 239-357-1853 Craig.

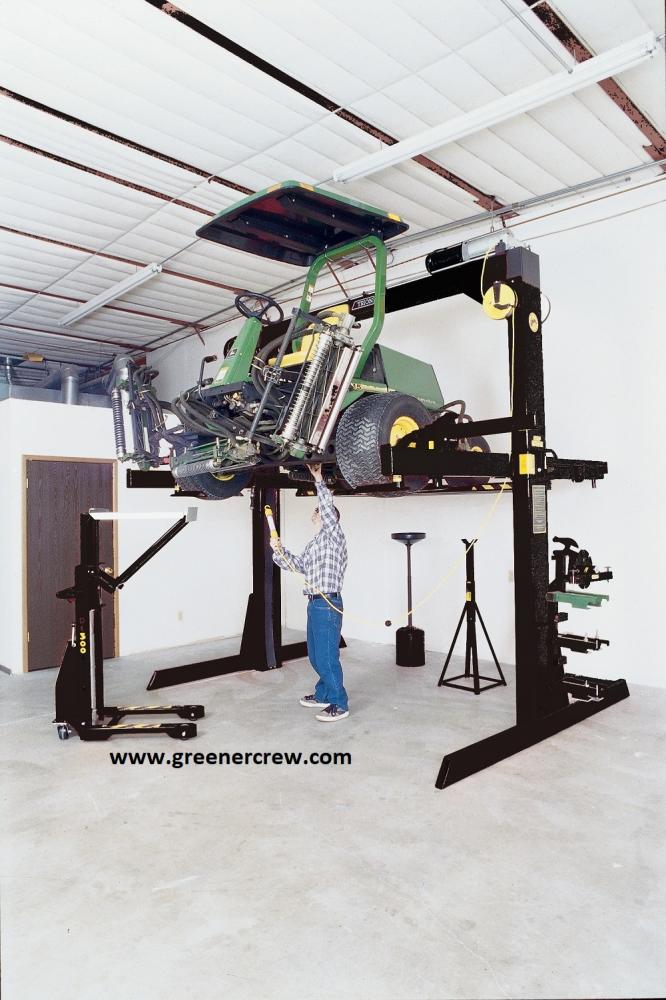

($6,995) PRO-M 9200 LIFT Complete Lift
Turf Maintenance System.
The Lift all others are judged by.
The First Equipment Lift Engineered and Designed for Turf Equipment.
Trion's lift is ideally suited for the maintenance needs of golf course maintenance departments and the parks and recreation industry, servicing equipment that is commonly used in professional turf facilities. Optional attachments listed below to make repair jobs even easier
($3,495) DL-1300 MOBILE LIFT TABLE.
Battery Not Included.
PRO-M WORKSTATION OPTIONS:
($1,295) 8401 Tool Bar Extensions (pair) Required to lift automobiles & pickup trucks .
($495) 9104 International 220 volt / 50 hz motor.
UNIVERSAL ATTACHMENT & ADAPTERS:
For servicing mowing units. These hold units upside down for replacing bedknives. Can be purchased & added later.
($430) 8201 Universal Attachment.
($105) All Items Below
8202 Gang Reel Adapter (Jacobsen models)
8203 Gang Reel Adapter (Toro models)
8210 Rotary Walkmower Adapter (all brands)
8211 Cutting Units (Jacobsen 3810).
8212 Triplex Greensmower Cutting Units (Jacobsen & Toro).
Lightweight Fairway Mower Cutting Units (Jacobsen & Toro).
8213 Lightweight Fairway Mower Cutting Units (John Deere).
8214 Toro RM5500, 650 & 6700.
8215 Toro Flex 21.
8216 Jacobsen Tournament Cut.
8217 Toro Triplex Greens (cast frame).
8219 Walkmower Adapter (Jacobsen chain-drive models).
8220 Walkmower Adapter (Toro 1000, 1800).
8221 Walkmower Adapter (John Deere 180B, 220B, 260B).
8223 Walkmower Adapter (Bunton & john Deere A.
8224 Storage Stand (to store adapters on Pro-M workstation).
Convenience items can be purchased & added later.
($105) 8230 Small Wheel Adapters, pair.
($29) 8250 Loading Guide Decals.
($7) 8251 Vehicle Decals.
($65) 8301 Rolling Shop Stool.
($85) 8302 Scissors Jack.
($195) 8304 Quick Oil Drain.
($55) 8305 Power Cord Reel (115 volt).
($95) 8306 Fluorescent Light Reel (115 volt).
($295) 8307 Air Hose Reel.
($175) 8308 Oil Drain Dolly.
($175) 8309 Heavy Duty Vehicle Stand.
($155) 8310 Oil Waste Can.
($35) 8311 Pistol Grease Gun.
($75) 8312 Air-Operated Grease Gun.
($7.95) 8313 Low Pressure Tire Gauge.
($195) 8314 Water Hose Reel .
OEM Names used for descriptive purpose only. Trion Claims no association with these companies.
Important features found on every Pro-M
Uni-Beam Construction keeps all hydraulic and electrical components well above the floor and far from potential spark hazards associated with flammable spills and fumes. Each is also pre-wired, pre-plumbed and pre-tested before shipment for easy customer assembly
Power Saver Hydraulics allows "plug and play" operation at 220v 1 PH
Tilt & Glide Wheel Forks operate smoothly and easily with a self-locking design that doesn't add extra steps to the loading/unloading process.
Weight Distributing Base Beams make Trion Lifts self-supporting so they can be installed on any surface. They also provide worry-free loading for overhung and unbalanced vehicles while rarely ever having to re position the wheel tray.
Single Point Controls simplify lift operation.
Instructions Right on the Lift , including safety instructions and our toll-free customer service number, make it easy to contact Trion experts, both during and after the warranty period.
Accu-load System Decals take the guesswork out of • mower positioning.
Overall Height: 138"
Overall Length: 121"
Shipping Weight: 1,685 lbs.
Max. Wheel Width Accepted 96"
Max Wheel Base Accepted: 86" (140" w/extensions).
Lifting Height / Weight: 6 ft. / 5000 lbs.
Power Unit: 1-1/2 HP, 220v 1PH
Controls: All in one location.
Installation: Self install with common tools in approx. 3 hours.
Warranty: 5-Year Parts.
Quality and productivity have always been and always will be Trion's focus. We are dedicated to the turf industry and our products are carefully designed with turf professionals in mind. Trion's ongoing commitment assures research will continue to bring new products and services designed to aid you in maintaining the wide variety of equipment you must service daily. And Trion promises uncompromising technical and service support with a strong warranty program that aims at total customer satisfaction.
The most recognized name in the turf maintenance lift industry because it created the industry..
