Tri Deck Roller Mower 130" - 204" Cutting Width
Tri Deck Roller Mower 130" - 204" Cutting Width
$28,500.00
Description
Free Shipping 239-357-1853 Craig.

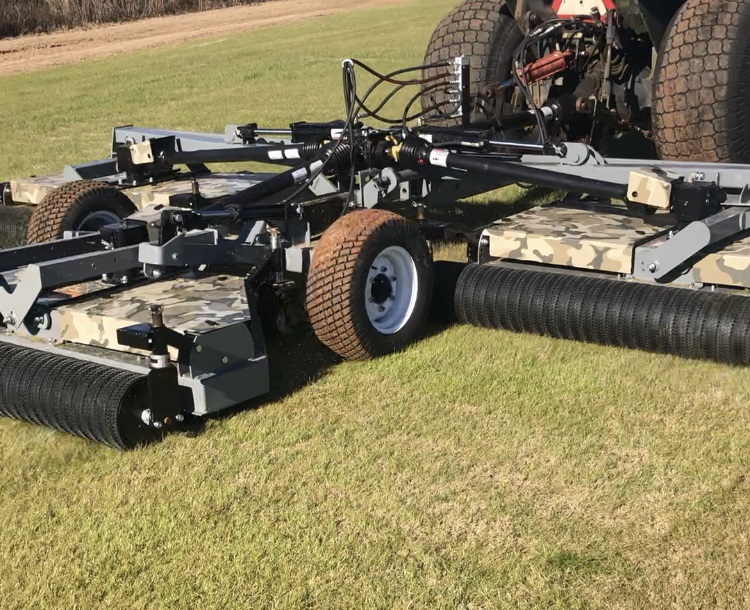

The Turf Pride Tri Deck features unique enclosed decks, produces excellent mowing action and reduces hazardous debris discharge. Heavy-duty 7-gauge deck frames are equipped with an anti-scalp roller system as standard equipment. Cutting Width: 130" - 204", Cutting Height: 1/2" to 4". Parking Jack standard equipment. Color options available.
The Tri Deck comes as a complete unit.
G-3130 Roller Mower 130" - $28,500.00
G-3180 Roller Mower 180" -- $33,500.00
G-3204 Roller Mower 204" -- $38,500.00
G-3180 Roller Mower 180" -- $33,500.00
G-3204 Roller Mower 204" -- $38,500.00
Roller Mower Features Off-Set Front Caster to Trim around Bunkers and Cart Paths.
SPECIFICATIONS:
Hitch Type Pull Type, Clevis Hitch with 3-positions.
PTO HP Required 40 HP (minimum).
Gearbox RPM 540.
Drive line Size Category IV 80-degree CV (main) Category III (wing) Wing Section.
Lift Arms 3" x 5" x ¼" Steel Tubing.
Wing Flex – Operates from 30 degrees up to 10 degrees.
Down Transport Tires (2) 23 x 8.5 x 12"
Deck Widths (3) 43", 57", 72" Deck Construction 3/16" Steel.
Blade Rotation Clockwise Blade Tip Speed Approx. 15,000 FPM.
Gauge Wheels (12) 3-1/4" x 10" solid or pneumatic.
Wing Deck Flex 10 degree side-to-side and front-to-rear – independent of wing frame.
Belts "HB" Size Kevlar Belt Adjustment Spring loaded idler.
Anti-Scalp Roller Sizes Front: 3" x 5" Rear: 3" x 13"
Wing Deck Flex 10 degree side-to-side and front-to-rear – independent of wing frame.
Belts "HB" Size Kevlar Belt Adjustment Spring loaded idler.
Anti-Scalp Roller Sizes Front: 3" x 5" Rear: 3" x 13"
Hitch Type Pull Type, Clevis Hitch with 3-positions.
PTO HP Required 40 HP (minimum).
Gearbox RPM 540.
Drive line Size Category IV 80-degree CV (main) Category III (wing) Wing Section.
Lift Arms 3" x 5" x ¼" Steel Tubing.
Wing Flex – Operates from 30 degrees up to 10 degrees.
Down Transport Tires (2) 23 x 8.5 x 12"
Deck Widths (3) 43", 57", 72" Deck Construction 3/16" Steel.
Blade Rotation Clockwise Blade Tip Speed Approx. 15,000 FPM.
Gauge Wheels (12) 3-1/4" x 10" solid or pneumatic.
Wing Deck Flex 10 degree side-to-side and front-to-rear – independent of wing frame.
Belts "HB" Size Kevlar Belt Adjustment Spring loaded idler.
Anti-Scalp Roller Sizes Front: 3" x 5" Rear: 3" x 13"
Wing Deck Flex 10 degree side-to-side and front-to-rear – independent of wing frame.
Belts "HB" Size Kevlar Belt Adjustment Spring loaded idler.
Anti-Scalp Roller Sizes Front: 3" x 5" Rear: 3" x 13"
On a daily or routine basis, the caster wheels and spindles will need grease.
FEATURES:
• Fabricated 7 Gauge Decks
• Commercial Grade Spindles
• 5-Year Gearbox Limited Warranty
• 4 X 4 in Boxed Wing Section Lift Arms
• Choice of Colors
• Fabricated 7 Gauge Decks
• Commercial Grade Spindles
• 5-Year Gearbox Limited Warranty
• 4 X 4 in Boxed Wing Section Lift Arms
• Choice of Colors
MODEL GT-3130
Cutting Width: 11 ft.
Cutting Height: 1/2 to 4 in.
Transport Width: 6 ft 6 in.
Transport Height: 6 ft 3 in.
Transport Length: 12 ft.
Minimum Tractor HP: 30 PTO.
Type Hitch: Pull type, Clevis, Three-Point Position
Gearbox: 45 HP.
Tractor PTO Speed: 540 RPM.
Driveline Size: Category 4 CV (Main) Category 3 (Decks)
Wing Section Lift Arms: 4 X 4 in Boxed Section.
Wing Flex: 30° UP & 10° Down.
Wing Deck Flex: 10° Side to Side, 10°
Tire Size: 23 X 9.5 (2)
Deck Widths: 4 ft (3)
Deck Plate: 6 gauge
Blade Tip Speed: 18,468 FPM.
Gauge Wheels: 10 X 4 in
Belt: (1) per Deck "B" size Kevlar
Belt Adjustment: Spring Loaded Idler
Deck overlap: 6 in.
Blade Overlap: 1-1/2 in.
Front Roller Size: 8 in diameter
Rear Roller Size: 4 in diameter.
Approximate Weight: 2450 lbs.
Cutting Width: 11 ft.
Cutting Height: 1/2 to 4 in.
Transport Width: 6 ft 6 in.
Transport Height: 6 ft 3 in.
Transport Length: 12 ft.
Minimum Tractor HP: 30 PTO.
Type Hitch: Pull type, Clevis, Three-Point Position
Gearbox: 45 HP.
Tractor PTO Speed: 540 RPM.
Driveline Size: Category 4 CV (Main) Category 3 (Decks)
Wing Section Lift Arms: 4 X 4 in Boxed Section.
Wing Flex: 30° UP & 10° Down.
Wing Deck Flex: 10° Side to Side, 10°
Tire Size: 23 X 9.5 (2)
Deck Widths: 4 ft (3)
Deck Plate: 6 gauge
Blade Tip Speed: 18,468 FPM.
Gauge Wheels: 10 X 4 in
Belt: (1) per Deck "B" size Kevlar
Belt Adjustment: Spring Loaded Idler
Deck overlap: 6 in.
Blade Overlap: 1-1/2 in.
Front Roller Size: 8 in diameter
Rear Roller Size: 4 in diameter.
Approximate Weight: 2450 lbs.
1-Year Limited Warranty with a 5-Year Gearbox Limited Warranty.
Other Features:
No Tools required to adjust height of cut Double acting Hydraulic Cylinder.
Equipped with Turf Pride Ultra Mulch Sling Blades.
Other blade options: Conventional High Lift Gator Style Mulch Blade.
Turf Pride Super-Thin Ultra Blades.
Minimum horsepower will be subject to change due to mowing conditions.
Other Features:
No Tools required to adjust height of cut Double acting Hydraulic Cylinder.
Equipped with Turf Pride Ultra Mulch Sling Blades.
Other blade options: Conventional High Lift Gator Style Mulch Blade.
Turf Pride Super-Thin Ultra Blades.
Minimum horsepower will be subject to change due to mowing conditions.
Payment can be made over the phone via Visa, MasterCard, American Express or Discover by calling 239-357-1853 Craig.(Greener Crew)
